Finite Element Magnetic Modeling

Integrated Magnetics uses Finite Element Analysis (FEA) and Finite Element Magnetic Modeling to analyze technical magnetic problems and develop more effective solutions. These solutions can then be tested against a prototype of the magnet structure and fine-tuned for optimal performance.

Using FEA modeling techniques, we can calculate flux densities, torques, and forces, and results can be output in various forms, including vector magnetic potentials, flux density maps, and flux path plots.

Our design and engineering team has extensive experience with many types of technical magnetic designs, and is available to assist in the design and execution of FEA models. Contact us today to learn more.

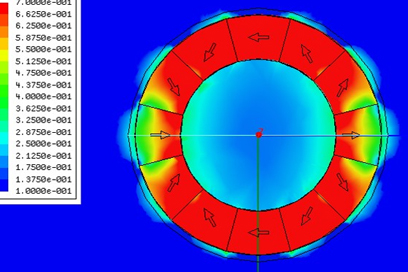

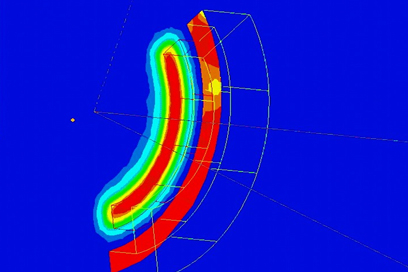

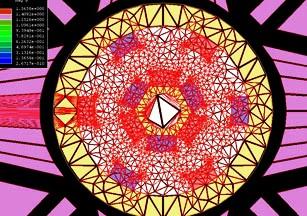

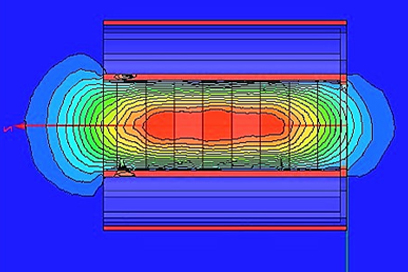

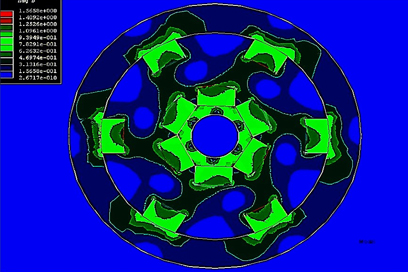

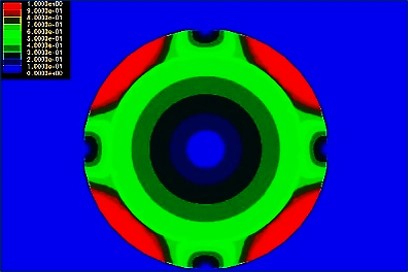

Here are few examples of our finite element analyses modeling projects:
